Multiple axes working simultaneously to decrease bending cycle time

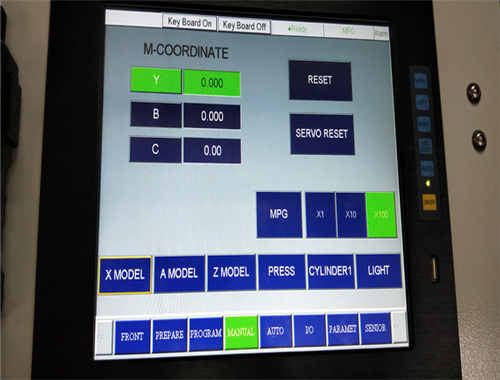

PC base controlled system for ease of upgrading & modifying program
Unlimited program storage with unlimited steps in program
Instant diagnosis of error
With one set of bending tooling
Processing wire diameter: 1.5 - 6mm & 1.5 - 10mm & 1.5 - 13mm
Process low carbon steel&aluminum wire Dia.（mm） | Φ1.5-10 |
Process 304 Stainless steel wire Dia. (mm) | Φ1.5-8.0 |
Process high carbon steel wire Dia. (mm) | Φ1.5-6.0 |
Max.Feeding speed (m/min) | 50 |
0.2 | |
Min.time required to reverse the core conversion (s) | 0.2 |
Min.time required to turn line 90 ° (s) | 0.8 |
Max. Speed reverse mechanism (mm/s) | 250 |
Largest feed limit | Unlimited |

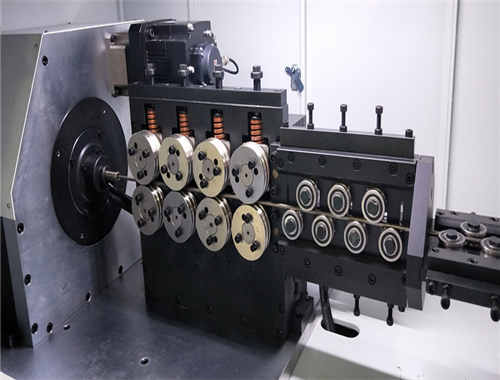

Feeding way | Roller wire |
Bending speed | |
Rotation speed | 180° /1.0s |
Feeding speed | 900mm/1.0s |
Input data style | Data/teaching |
Bending servo motor power | 3000w |
Feeding servo motor power | 3000w |
Rotation servo motor power | 2000w |
Electric capacity (KVA) | 10 |
Gross Weight (KGS) | 4000 |
The main machine package dimensions (mm) | 2800*1600*1920 |

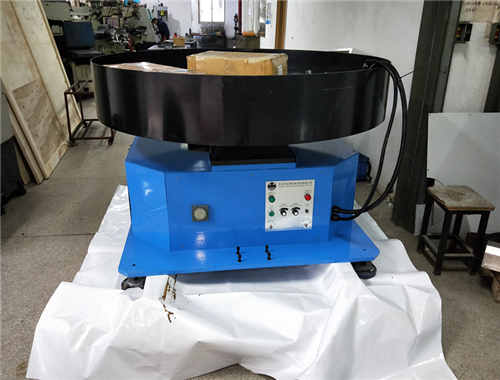

The auto decoiler package dimensions (mm) | 1640*1640*1420 |
